Sunday, January 26, 2014

Eye failure, more foam and a completed head sculpt

So the ladle as a mold didn't work, the resin expanded (I guess) and cracked it. I quickly bounced back though with the idea to use a ball from a ball pit, which I was able to use as a stand-in while I kept sculpting the head.
 I don't think I ever got pictures of the foam we used on the torso, but here that is. It's really comfy, actually and not hot at all in the 70F weather of Florida that we've had lately.
 And the head sculpt! It looks a little wonky in pictures but it looks really great in real life. I'm very proud of it, and I just need to smooth it out a bit more and possibly adjust the back of it where the hinge will be installed before completion of it.
I like this angle the best on it I think. All in all it took 28 pounds of clay and about ten dollars worth of foam and way too much time. Couple hundred hours worth. I believe I finished the entirety of The Office while sculpting.
 We added more mesh to the backs of the ankles so I could get it on easier. It is SO much better this way, very easy to put on and it doesn't feel as tight or constricting.

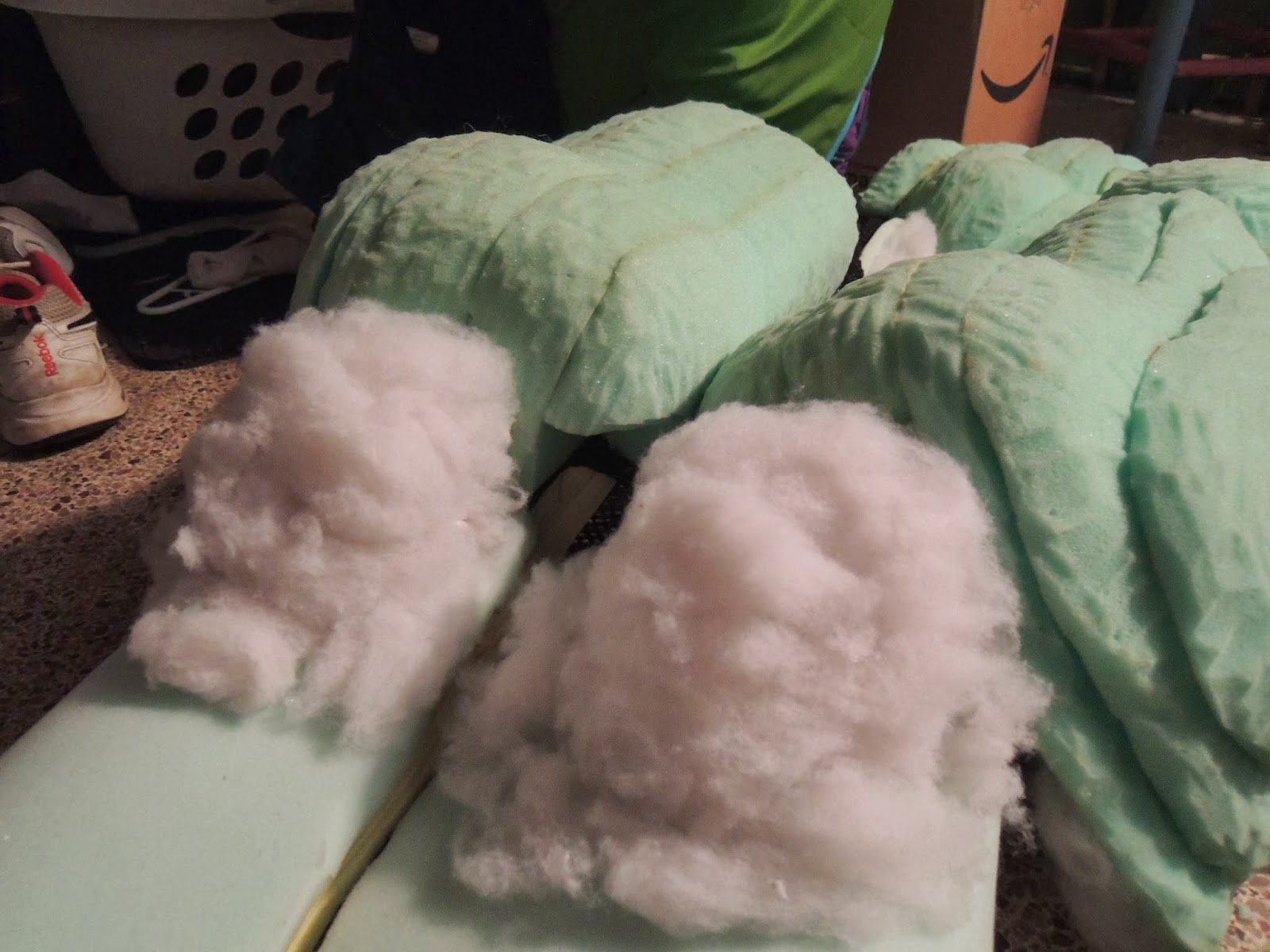

 I also added stuffing to around the thighs so that the tail will look more attached to the body rather than having a gap between the two. I haven't tried it on yet so I might have to put even more stuffing to get that effect.
 Then on the front torso I added stuffing as well to make the transition more smooth rather than abrupt.

Friday, January 10, 2014

Patterning for the fabric & beginnings of the eyes.

 There are plenty of examples for patterning online with duct tape, but the main thing I have to say about it for advice is to definitely use plastic bags. I see a lot of people say to use cellophane but plastic bags are something we have way too many of despite re-using shopping bags and they work just great with the duct tape. I just cut out pieces and hold it over while covering the piece with duct tape.
 Good look at how the foot will look with the claw.
 The tail was so big I didn't use duct tape though, since that would probably take some three-five rolls of it. I used brown paper, which we keep around to wrap fish in for my dad's work. It worked just great though with duct tape to put the pieces together, then cut it down the middle. Something I keep having issues with is after sewing it together and putting it on, the fabric is so stretchy it's just covered in wrinkles if I don't make the pattern a good inch or two smaller before sewing.
 Despite that being an issue though, USE SPANDEX if you can! This is SO easy to work with since we have the correct needles. It's great. Stretches right over so it doesn't matter if it doesn't fit perfectly. Just takes a bit to get used to.
 After I sewed the tail pattern though, the nylon webbing showed up right underneath it and looked pretty fake. So I took some stuffing and used tacky glue to put it right over the webbing, which, voila, cured the problem! It looks great now and feels pretty cool too.
 Tail! I cut the pattern so the seam only goes right down underneath the bottom and it looks great, seamless and everything.
 On the pressure points of the costume--crotch, armpits, hands, I'm going to double or triple stitch it but for the most part I think it's okay with once.
 I'm really happy with the way this hand turned out but I made the mistake of thinking the hands were perfectly symmetric. Same with the feet too, haha. It's not. At all. Make separate patterns for each of them instead of just making the patterns backwards. Save the trouble.
 The one on the right was used with the left foot's pattern, which you can clearly see. Won't matter because the tops of the toes go all the way down to the foam-toes doesn't bother me at all, but it's something to keep in mind.
 Then pouring the resin earlier! I filled up the ladle with water before even starting and then poured it into the little mixing cups that came included in the kit but somehow I still didn't fill the ladle all the way up to the top. I don't think it'll matter, but I am a bit disappointed with that.
After following the directions very precisely, I'm hoping it'll all go right! Outside curing right now.
